Siren/Voice Drivers & Recordable Modules
Siren Driver Comparison Chart

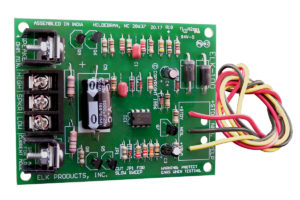

ELK-100 |

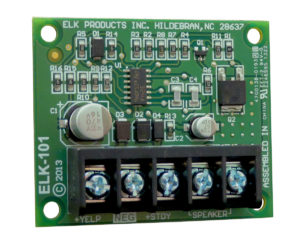

ELK-101 |

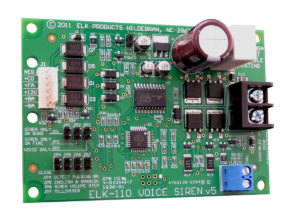

ELK-110 |
ELK-120 |
ELK-124 |
|
| Siren Capability | Yelp, Steady, Slow Sweep |
Yelp, Steady | Yelp (Burg), Temporal Coded Tones (Fire & CO) |
Preloaded Yelp, Industrial Horn & Temporal Coded Tone (Fire) |
No Preloaded Sounds |
| Voice Capability | No Voice | No Voice | Burg, Fire, and CO Voice Messages |
Preloaded Burg & Fire Messsages |
No Preloaded Messages |
| Recordable | NO | NO | NO | YES 4 Channels |
YES 8 Channels |
| Connections | Flying Leads | Screw Terminals | Plug-In Harness | Screw Terminals | Screw Terminals |
| Sound Level | 120 dB @ 1 meter | 112 dB @ 1 meter | 122 dB @ 1 meter | 122 dB @ 1 meter | 122 dB @ 1 meter |
| Volume Settings | Two Levels (High/Low) |
None | VolumeStep™ (slowly increases siren volume) |
Adjustable Volume | Adjustable Volume |
| Current Draw (Min/Max) |
700mA / 1.2 Amps | 305mA / 950mA | 800mA / 1.25Amps | 200mA / 2 Amps | 200mA / 2 Amps |
| Operating Voltage | 6-14 VDC | 6-14 VDC | 10-14 VDC | 11-14 VDC | 11-14 VDC |
| Dimensions | 2.75” x 3.6” x 1” | 1.9” x 2.3” x .7” | 2.75” x 4.0” x 1.13” | 3” x 5” x .8” | 4.38” x 6.5” x 2” (enclosure) |
| Lifetime Limited Warranty |
YES | YES | YES | YES | YES |
