M1 Interface Kit for Lutron
ELK-M1XSLC

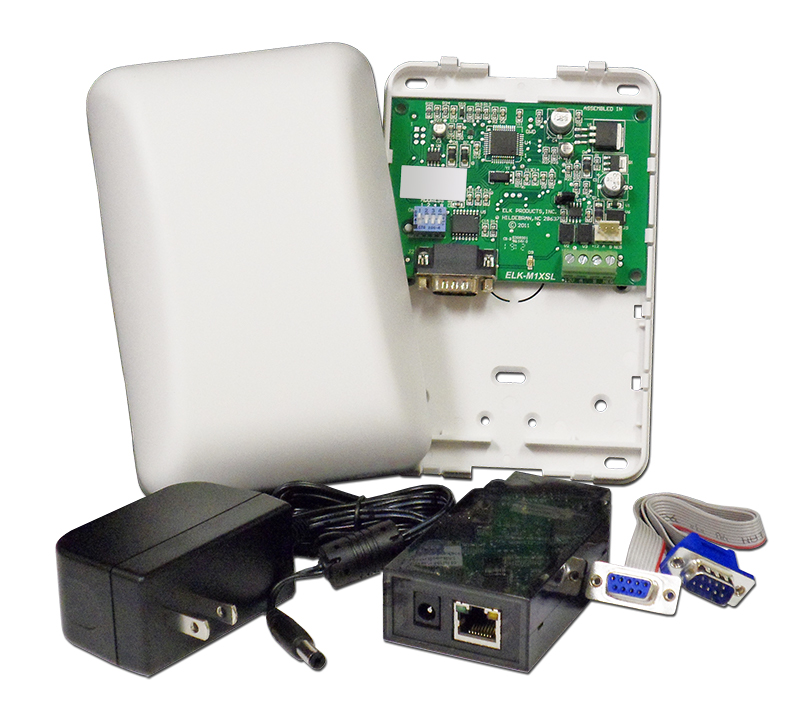

The ELK-M1XSLC interface kit contains the necessary ELK components (ELK-M1XSLU and ELK-IP232) for integration with Lutron Caséta Wireless, RA2 Select, or Homeworks QS devices.
This kit facilitates communication with the Lutron Smartbridge Pro allowing M1 to control Caséta lights and shades. It also supports communication with the Lutron Homeworks QS Processor allowing M1 to control Homeworks QS lights, shades and thermostats.
NOTE: Integration with Homeworks QS requires special firmware for the M1XSLU
Product Details
ELK-M1XSLU
• Connects to M1 data bus and to IP232 via RS232 and null modem (included)
ELK-IP232
• Connects to Lutron bridge or processor
ELK-M1XSLU
• Current Draw: 31mA
• Housing Dimensions: 4.25” x 6.375” x 2.125”
ELK-IP232
• Operating Voltage: 12VDC supplied from ELK-P1216 (included)
• Current Draw: 135mA
• Dimensions: 3.85” L x 1.7” W x 0.93”D
Resources
• ELK-M1XSLU M1 Interface for Lutron
• Plastic Housing
• ELK-IP232 Serial to Ethernet Bridge
• ELK-P1216 1.6A 12Vdc Power Supply
• ELK-W040A DB9 Pin Serial Cable Assembly
• 4 #6 Plastic Anchors
• 4 #6 Pan Head Sheet Metal Screws
• Mini Null Modem Adapter
• Instructions
