Low Profile LCD Keypad for M1 Controls

ELK-M1KP2

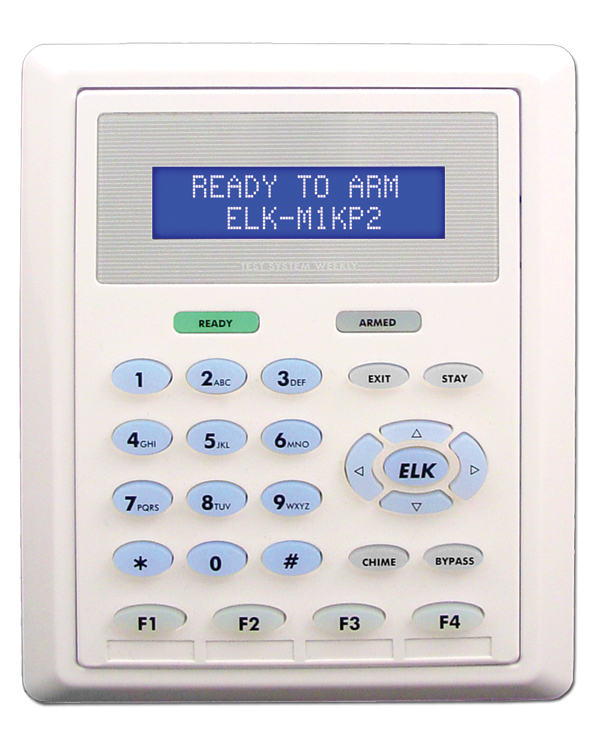

The ELK-M1KP2 is a low profile, addressable LCD Keypad for the M1 family of Cross Platform Controls®. It features a 32 character blue/white backlighted display, blue lighted keys, 4 programmable function keys, along with the ELK menu navigation keys. It may also be recess ‘flush’ mounted using with a separately purchased back box kit (ELK-M1BBK2). The M1KP2 is compatible with “external” 26 bit Wiegand compatible proximity readers, allowing cards or fobs to be used for arming, disarming, or limited door strike control, etc.

M1KP2

Product Details

  • Blue/white Backlighted Hi-Contrast LCD Display
  • Four (4) Programmable Function Keys
  • Unique Menu Navigation/Direction Keys
  • Operates from the M1/EZ8 RS-485 Data Bus
  • Built-in Piezo Sounder with adjustable pitch
  • Accepts “External” 26 bit Wiegand Prox Reader (Optional)
  • Input for 1 Supervised Zone
  • One Programmable “Switched Positive” Voltage Output
  • Exit, Stay, Chime, and Bypass Keys
  • Surface mounts to a standard 1 or 2 gang electrical box
  • Optional recess ‘flush’ mount kit available (ELK-M1BBK2)
  • Connection: 6 Pin Plug-in “Flying Lead” Connector (Included)
  • Color: White
  • Operating Voltage: 13.8 VDC
  • Current Draw: ~30 mA Idle (low back light level, sounder silent)
    ~85mA Fully Active (max. back light & sounder active)
  • Size: 4.658″ W x 5.5″ H x .95″ D (.375″ D with recess mount)

Resources

  • Low Profile LCD Keypad with Blue Display
  • 1 each Multicolor Labels
  • 4 #6 Flat Head Phillips Sheet Metal Screw
  • 4 #4-20 Pan Head Phillips Plastite Screw
  • 1 2200 Ohm Resistor
  • 5 Gel Filled B-Connector
  • 1 Mini Jumper
  • 6-wire Flying Lead Cable Assembly
  • Instructions
