LED Arming Station Keypad for M1 Controls

ELK-M1KPAS

Small, economical, arm/disarm station for M1 Controls which fits into single gang box and utilizes a standard decorator style faceplate (not included). Particularly well suited for partitioned jobs such as an office, workshop, garage, etc., but can also be used as the main keypad for any installation. Displays basic system status with 3 LEDs: Green “Ready”, Yellow “Trouble”, and Red “Armed”. The 12 button keypad is backlit with blue LEDs and has quick arm keys for “EXIT” and “STAY”. The M1KPAS also provides access to six (6) programmable function operations by pressing the “F” key followed by the number key (1-6) within 5 seconds.

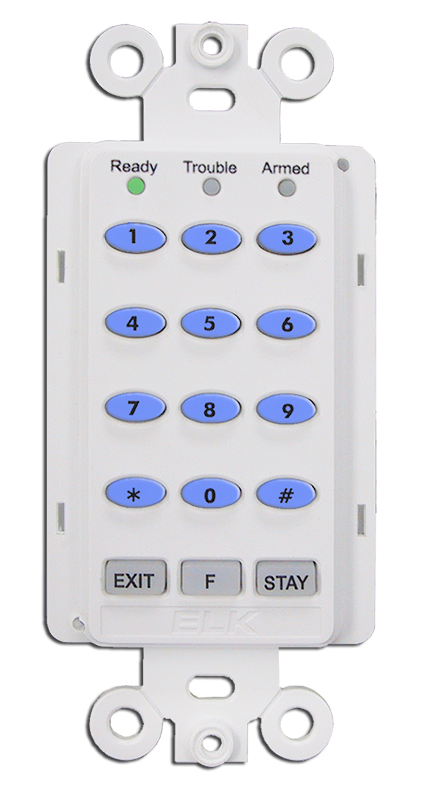

kpas

Product Details

  • Blue Backlit Keys
  • Quick Arm Exit & Stay Keys
  • LED Status Indication
  • Instant Activation of 6 Tasks
  • Operates from M1G or EZ8 'RS-485" Data Bus
  • Built-in Piezo Sounder
  • Connection: 4 Pin Plug-in "Flying Lead" Connector (Included)
  • Color: White
  • Operating Voltage: 13.8VDC

Resources

  • Arming Station
  • Hardware Pack w/2 screws, 4 Gel filled B-Connectors
  • 4 pin ribbon Cable
  • Instructions

Locate an ELK Authorized Distributor Near You!

For more infomation, call ELK at (800) 797-9355.
