UltraProx Wiegand Reader
ELK-106055

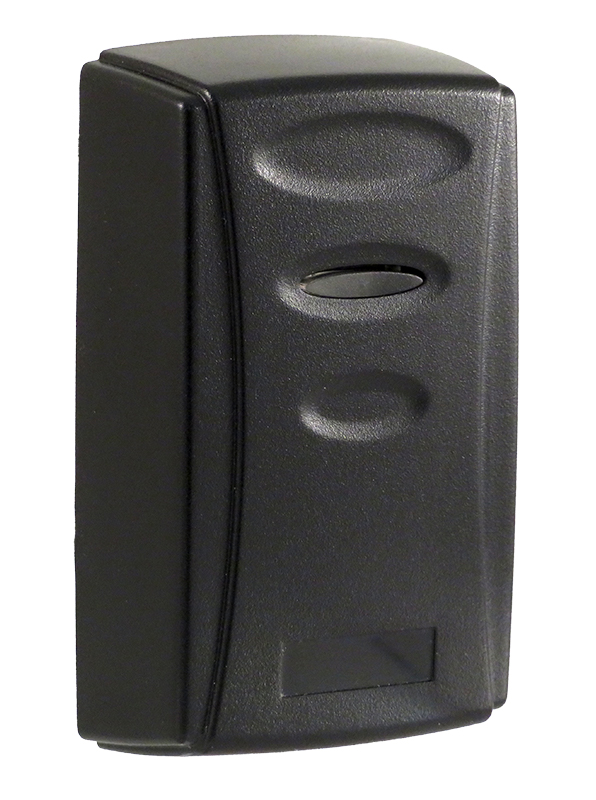

The Elk UltraProx Wiegand Reader is a compact, technically advanced external proximity reader with 26 bit Wiegand output for use with a separate controller. Compatible with Elk M1 control panels and most other access controllers. Ideal for higher security installations and as an alternative to remembering PIN codes.
Product Details
- Compatible with ELK M1 Controls, using M1KAM Access Module or certain M1 keypads
- Compatible with most access controllers
- 26-bit Wiegand Output
- Slimline waterproof housing with epoxy potted electronics
- User configurable inputs for the onboard buzzer and green LED
- Compatible with Clamshell Style (Credit Card size) Proximity Cards (ELK-M1PRC)
- Compatible with Keychain Style Proximity Fobs (ELK-M1PRF)
- Substitutes for User Code Pin Entry
- Reader Format: 26 bit Wiegand
- Operating Voltage: 12 VDC
- Current Draw: 50 mA.
- Size: 1.9 W x 3.2" H x .9" D
Resources
- Ultra Prox Weigand Reader
- One (1) ELK-PRC Proximity Card
- Mounting Hardware
- Instructions
